The Panel

The GaugePak Auxiliary Gauge and Switch Panel is designed for Superformance Mk III owners who wants to add additional gauges and switches, but do not want to modify the existing dashboard.

• Custom designed and manufactured for the Superformance Mk III by Chuck Kendall (SP 1591). It has features not found in universal type gauge panels

• Mounts on the two upright braces under the Mk III dashboard

• Angled upward to provide good line of sight from the drivers seat

• Mounting position provides access to trip odometer reset and auxiliary power socket

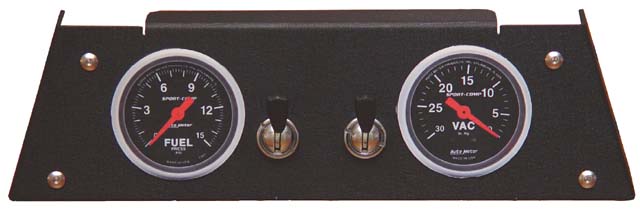

• Standard Panel accepts two 2 1/16” gauges and two blade type Cobra style toggle switches

• Panel is made from heavy gauge aluminum with flanges that provide additional stiffness and cover mounting hardware and wiring

• Wrinkle black powder coated to match Mk III interior and dash

• Simple installation requires no modification to the dash or uprights

• Mounted to the two upright supports using two black wrinkle powder coated billet aluminum mounting blocks secured by black tie wraps

• Panel is secured to the mounting blocks with four Allen head stainless steel machine screws

• Once installed, the Panel can be easily removed for gauge and switch installation, wiring, and maintenance

Switches

A variety of suitably styled switches to suit most needs are available from Finish Line
www.finishlineaccessories.com
See the Cobra Accessories / Switches section.

Gauges

Auto Meter has a wide variety of 2 1/16” gauges. In particular, check the Cobra, Cobalt, Sport-Comp, Sport-Comp II and Traditional Chrome gauge lines for gauges that are reasonably visually compatible with the standard Cobra gauges. The Auto Meter website
www.autometer.com
has a very nice Advanced Gauge Search function that allows you to input the specs you need, then shows you all the gauges that meet your needs.

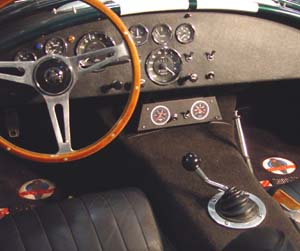

From the driver’s seat.

To Order

The Auxiliary Gauge and Switch Panel is available from the Second Strike Store. Order with the Second Strike Order Form. Please allow 4 weeks for delivery.

The price is $95.00 including shipping for the Panel and mounting hardware only. Gauges and switches are purchased separately as noted.

Contact

For additional information, contact:

Mike Stenhouse
Second Strike
PO Box 4600
Davidson NC 28036
704-895-1900

Custom

Custom panels with different layout are available. Custom engraving is available. Additional charges depend on specifications. For additional information contact Second Strike.
